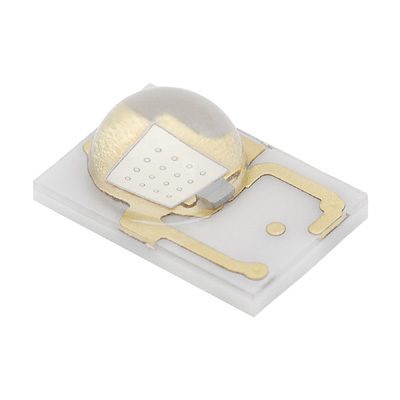

The LUXEON Rebel Color Line has leading light output, color stability, flux density and clear saturated colors. These color LEDs are ideal for a wide variety of lighting, signaling, signage and entertainment applications. Every LUXEON Rebel Color emitter has built-in quality, reliability, lumen maintenance and the ease of manufacturing needed to create a superior, high quality light. LUXEON Rebel Color emitters give designers an endless palette of colors to work with, adding interest, dimension and liveliness to all lighting projects.
Proven reliable, 4530 high-power LED that gives you the design flexibility and performance you need
Proven reliable, hot-tested at 85C, this 4530 high-power LED offers color consistency at 80CRI for a range of CCTs.
Tested and binned at 700mA, this high-power package is more efficient for 4100K and 5650K applications.
Product performance of LUXEON Rebel Color Line at test conditions.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux(lm) or Radiometric Power(mW) |
Test Current (mA) | Part Number | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | |||
 Deep Red |
650 | 670 | 270 | 360 | 350 | LXM3-PD01 |
 Red |
620 | 645 | 60 | 62 | 350 | LXM2-PD01-0060 |
| 620 | 645 | 50 | 53 | 350 | LXM2-PD01-0050 | |
| 620 | 645 | 40 | 48 | 350 | LXM2-PD01-0040 | |
| 620 | 645 | 50 | 64 | 350 | LXM5-PD01 | |
 Red-Orange |
610 | 620 | 70 | 72 | 350 | LXM2-PH01-0070 |
| 610 | 620 | 60 | 67 | 350 | LXM2-PH01-0060 | |
| 610 | 620 | 50 | 90 | 350 | LXM5-PH01 | |
 PC Amber |
594 | 604 | 80 | 110 | 350 | LXM2-PL01-0000 |
| Amber |
585 | 595 | 50 | 99 | 350 | LXM5-PL01 |
 Lime |
566 | 569 | 140 | 184 | 350 | LXML-PX02-0000 |
 Green |
520 | 540 | 100 | 102 | 350 | LXML-PM01-0100 |
| 520 | 540 | 90 | 95 | 350 | LXML-PM01-0090 | |
| 520 | 540 | 80 | 88 | 350 | LXML-PM01-0080 | |
| 520 | 540 | 70 | 79 | 350 | LXML-PM01-0070 | |
 Cyan |
490 | 515 | 80 | 83 | 350 | LXML-PE01-0080 |
| 490 | 515 | 70 | 76 | 350 | LXML-PE01-0070 | |
| 490 | 515 | 60 | 67 | 350 | LXML-PE01-0060 | |
 Blue |
460 | 485 | 40 | 41 | 350 | LXML-PB01-0040 |
| 460 | 485 | 30 | 35 | 350 | LXML-PB01-0030 | |
| 460 | 485 | 23 | 28 | 350 | LXML-PB01-0023 | |
| 460 | 485 | 18 | 22 | 350 | LXML-PB01-0018 | |
 Royal Blue |
440 | 460 | 500 | 520 | 350 | LXML-PR01-0500 |
| 440 | 460 | 1100 | 1120 | 700 | LXML-PR02-1100 | |
| 440 | 460 | 1050 | 1070 | 700 | LXML-PR02-1050 | |
| 440 | 460 | 1000 | 1030 | 700 | LXML-PR02-1000 | |
| 440 | 460 | 950 | 970 | 700 | LXML-PR02-0950 | |
| 440 | 460 | 900 | 940 | 700 | LXML-PR02-0900 | |
| 440 | 460 | 800 | 890 | 700 | LXML-PR02-0800 | |
| 440 | 460 | 900 | 1030 | 700 | LXML-PR02-A900 | |
Application Brief
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| AB06 | LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress | cze 5, 2017 |
| AB33 | LUXEON Rebel Platform Thermal Measurement Guidelines | sie 1, 2024 |
| AB32 | LUXEON Rebel platform Assembly and Handling Information Application Brief | lip 11, 2016 |
Articles
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| NA04 | Avoiding Current Spikes with LEDs | mar 28, 2008 |
| NA05 | Understanding LED performance | cze 22, 2011 |
Case Study
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| CS115 | The Times Square Ball Case Study | kwi 1, 2015 |
Datasheets
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| DS68 | LUXEON Rebel Color Line Product Datasheet | lis 11, 2024 |
Product Brief
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| PB68 | LUXEON Rebel Color Line Product Brief | sty 3, 2023 |
White Paper
|
Doc Number
|
Title
|
Last Modified
|
|---|---|---|
| WP15 | Evaluating the Lifetime Behavior of LED Systems | gru 1, 2016 |
| WP14 | Street Lighting—LEDs: Coming Soon to a Street Light Near You | gru 1, 2016 |
| LL ID | File format | Title | Products | Modified | Size (MB) |
|---|---|---|---|---|---|
| DRE003 |
Altium Designer |
LUXEON Rebel Altium Designer library model |
LXW9-PW30 LXW9-PW27 LXW8-PW50 LXW8-PW40 More Products |
10/04/2019 | 0.01 |
| DRE002 |
Eagle |
LUXEON Rebel Eagle library model |
LXW9-PW30 LXW9-PW27 LXW8-PW50 LXW8-PW40 More Products |
10/04/2019 | 0.03 |
| DRM003 |
DXF |
LUXEON Rebel Footprint (DXF) | 04/26/2016 | 0.10 |
| LL ID | File format | Title | Products | Modified | Size (MB) |
|---|---|---|---|---|---|
| DRM001 |
IGS |
LUXEON Rebel 3D-CAD (IGS) | 04/26/2016 | 0.03 | |
| DRM002 |
STP |
LUXEON Rebel 3D-CAD (STP) | 04/26/2016 | 0.01 | |
| DRM003 |
DXF |
LUXEON Rebel Footprint (DXF) | 04/26/2016 | 0.10 | |
| DRM0985 |
DWG |
LUXEON Rebel FR4 Filled and Capped Vias (DWG) |
LXML-PR01-0425 LXML-PR01-0350 LXML-PR01-0275 LXML-PM01-0100 More Products |
04/26/2016 | 0.04 |
In order to properly use the optical design resource file below, please download the README file for instructions. | LL ID | File format | Title | Products | Modified | Size (MB) |
|---|---|---|---|---|---|
| DRO3399 |
LucidShape |
LUXEON Rebel Color Line PC Amber LXM2-PL01 LucidShape 5M rays |
LXM2-PL01-0090 LXM2-PL01-0080 LXM2-PL01-0070 LXM2-PL01-0060 |
01/22/2019 | 127.32 |
| DRO052 |
LightTools |
LUXEON Rebel Color Ray Set 5M rays |
LXML-PD01-0030 LXML-PD01-0040 LXML-PH01-0040 LXML-PH01-0050 More Products |
03/24/2008 | 465.39 |
| DRO053 |
TracePro |
LUXEON Rebel Color Ray Set 5M rays |
LXML-PD01-0030 LXML-PD01-0040 LXML-PH01-0040 LXML-PH01-0050 More Products |
03/24/2008 | 12.68 |
| DRO054 |
LucidShape |
LUXEON Rebel Color Ray Set 5M rays |
LXML-PD01-0030 LXML-PD01-0040 LXML-PH01-0040 LXML-PH01-0050 More Products |
03/24/2008 | 12.68 |
| DRO055 |
ASAP |
LUXEON Rebel Color Ray Set 5M rays |
LXML-PD01-0030 LXML-PD01-0040 LXML-PH01-0040 LXML-PH01-0050 More Products |
03/24/2008 | 12.68 |
| DRO057 |
Zemax |
LUXEON Rebel Color Ray Set 5M rays |
LXML-PD01-0030 LXML-PD01-0040 LXML-PH01-0040 LXML-PH01-0050 More Products |
03/27/2008 | 12.68 |
| DRO1785 |
ASAP |
LUXEON Rebel ES Lime ASAP 5M rays |
LXML-PX02-0000 |
02/19/2014 | 133.52 |
| DRO1795 |
ProSource rs8 |
LUXEON Rebel ES Lime color scan in ProSource rs8 format |
LXML-PX02-0000 |
02/19/2014 | 473.15 |
| DRO1786 |
LightTools |
LUXEON Rebel ES Lime LightTools Binary 5M rays |
LXML-PX02-0000 |
02/19/2014 | 133.52 |
| DRO1787 |
OPTIS/SPEOS |
LUXEON Rebel ES Lime Optis/SPEOS 5M rays |
LXML-PX02-0000 |
02/19/2014 | 152.59 |
| DRO1788 |
TracePro |
LUXEON Rebel ES Lime TracePro Binary 5M rays |
LXML-PX02-0000 |
02/19/2014 | 133.51 |
| DRO1789 |
Zemax |
LUXEON Rebel ES Lime Zemax 5M rays |
LXML-PX02-0000 |
02/19/2014 | 133.52 |
| DRO2094 |
ASAP |
LUXEON Rebel ES Royal Blue and Blue ASAP 5M rays |
LXML-PR02 LXML-PB02 |
04/10/2015 | 133.51 |
| DRO2091 |
ProSource rs8 |
LUXEON Rebel ES Royal Blue and Blue in Prosource rs8 format |
LXML-PR02 |
04/10/2015 | 285.71 |
| DRO795 |
LightTools |
LUXEON Rebel ES Royal Blue and Blue LightTools Binary 5M rays |
LXML-PB02 LXML-PR02 |
04/10/2015 | 130.38 |
| DRO2097 |
LightTools |
LUXEON Rebel ES Royal Blue and Blue LightTools Binary 5M rays |
LXML-PR02 LXML-PB02 |
04/10/2015 | 133.51 |
| DRO3400 |
LucidShape |
LUXEON Rebel ES Royal Blue and Blue LucidShape 5M rays |
LXML-PB02 LXML-PR02 |
09/15/2021 | 133.51 |
| DRO1936 |
TracePro |
LUXEON Rebel ES Royal Blue and Blue TracePro 5M rays |
LXML-PB02 LXML-PR02 |
04/10/2015 | 133.51 |
| DRO1891 |
Zemax |
LUXEON Rebel ES Royal Blue and Blue Zemax 5M rays |
LXML-PB02 LXML-PR02 |
04/10/2015 | 133.51 |
| DRO782 |
ASAP |
LUXEON Rebel Low Vf AlInGaP ASAP 5M |
LXM3-PD01-0350 LXM3-PD01-0260 LXM2-PH01-0070 LXM2-PH01-0060 More Products |
02/23/2016 | 130.38 |
| DRO785 |
LightTools |
LUXEON Rebel Low Vf AlInGaP LightTools 5M |
LXM3-PD01-0350 LXM3-PD01-0260 LXM2-PH01-0070 LXM2-PH01-0060 More Products |
02/23/2016 | 130.38 |
| DRO779 |
ProSource 8 |
LUXEON Rebel Low Vf AlInGaP ProSource RS8 |
LXM3-PD01-0350 LXM3-PD01-0260 LXM2-PH01-0070 LXM2-PH01-0060 More Products |
02/23/2016 | 1.63 |
| DRO788 |
Zemax |
LUXEON Rebel Low Vf AlInGaP Zemax 5M |
LXM3-PD01-0350 LXM3-PD01-0260 LXM2-PH01-0070 LXM2-PH01-0060 More Products |
02/23/2016 | 130.39 |
| DRO002 |
ProSource rsmx format |
LUXEON Rebel Optical Source Model |
LXML-PR01-0500 LXML-PM01-0100 LXML-PM01-0090 LXML-PM01-0080 More Products |
07/12/2010 | 152.59 |
| DRO003 |
ProSource rsmx format |
LUXEON Rebel Optical Source Model |
LXML-PL01-0030 LXML-PL01-0023 LXML-PH01-0050 LXML-PH01-0040 More Products |
03/18/2008 | 171.66 |
| DRO149 |
ASAP |
LUXEON Rebel PC Amber ASAP 5M rays |
LXM2-PL01-0060 LXM2-PL01-0070 LXM2-PL01-0080 LXM2-PL01-0090 |
01/04/2009 | 127.32 |
| DRO147 |
LightTools |
LUXEON Rebel PC Amber LightTools 5M rays compressed in ZIP |
LXM2-PL01-0090 LXM2-PL01-0080 LXM2-PL01-0070 LXM2-PL01-0060 |
01/04/2009 | 153.00 |
| DRO148 |
ProSource |
LUXEON Rebel PC Amber rs8 ProSource format |
LXM2-PL01-0060 LXM2-PL01-0070 LXM2-PL01-0080 LXM2-PL01-0090 |
06/30/2010 | 232.00 |
| DRO146 |
Zemax |
LUXEON Rebel PC Amber Zemax 5M rays |
LXM2-PL01-0060 LXM2-PL01-0070 LXM2-PL01-0080 LXM2-PL01-0090 |
01/04/2009 | 134.00 |
| DRO021 |
Zemax |
LUXEON Rebel Ray Set 5M rays |
LXML-PR01-0500 LXML-PM01-0100 LXML-PM01-0090 LXML-PM01-0080 More Products |
05/03/2018 | 127.33 |
| DRO019 |
ASAP |
LUXEON Rebel Ray Set 5M rays |
LXML-PB01-0018 LXML-PB01-0023 LXML-PB01-0030 LXML-PB01-0040 More Products |
03/31/2008 | 127.33 |
| DRO018 |
TracePro |
LUXEON Rebel Ray Set 5M rays |
LXML-PB01-0018 LXML-PB01-0023 LXML-PB01-0030 LXML-PB01-0040 More Products |
03/31/2008 | 127.33 |
| DRO017 |
LucidShape |
LUXEON Rebel Ray Set 5M rays |
LXML-PB01-0018 LXML-PB01-0023 LXML-PB01-0030 LXML-PB01-0040 More Products |
03/31/2008 | 127.79 |
| DRO016 |
LightTools |
LUXEON Rebel Ray Set 5M rays |
A1DL-O612L LXML-PB01-0018 LXML-PB01-0023 LXML-PB01-0030 More Products |
03/31/2008 | 466.35 |
