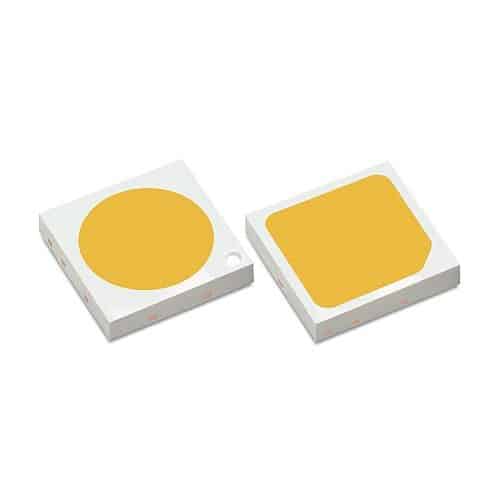

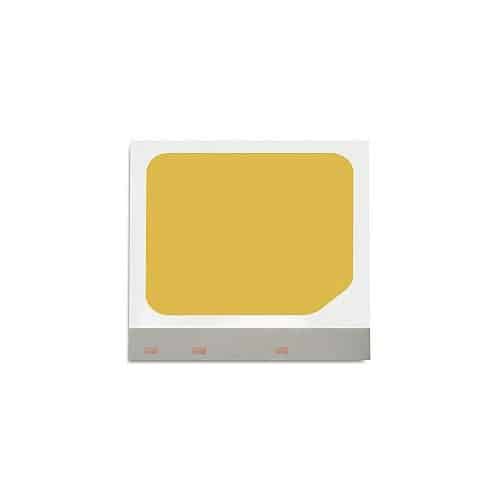

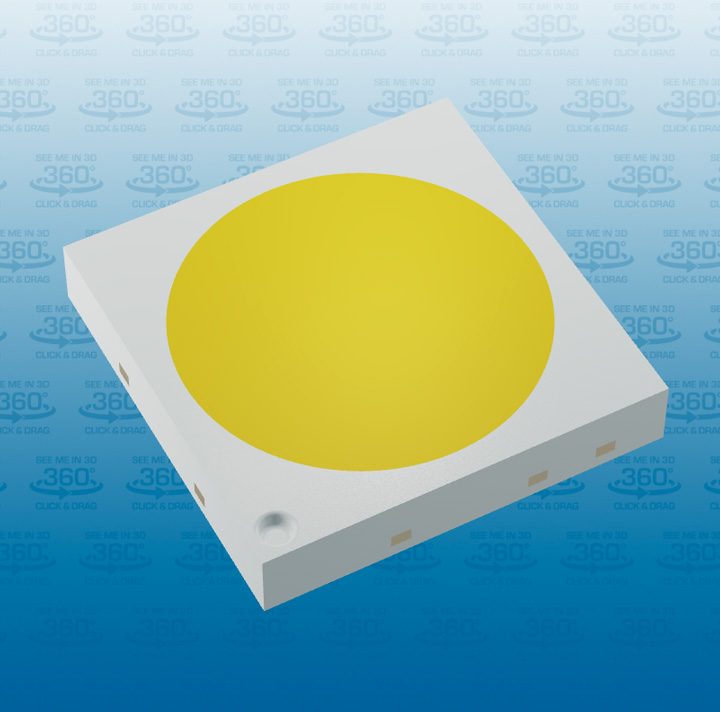

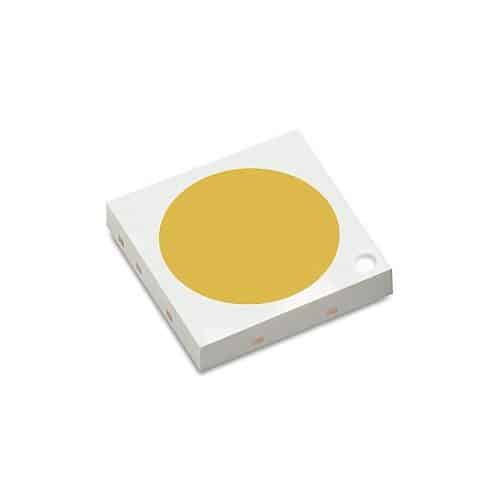

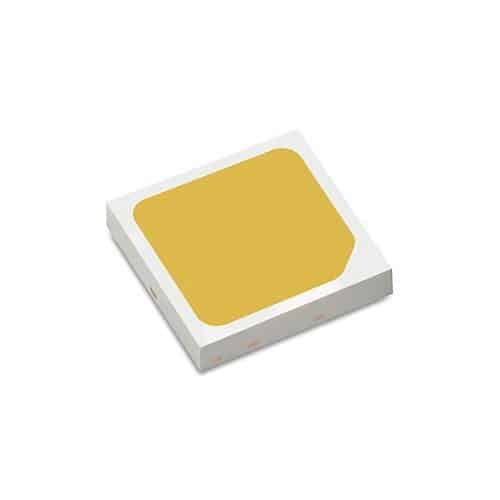

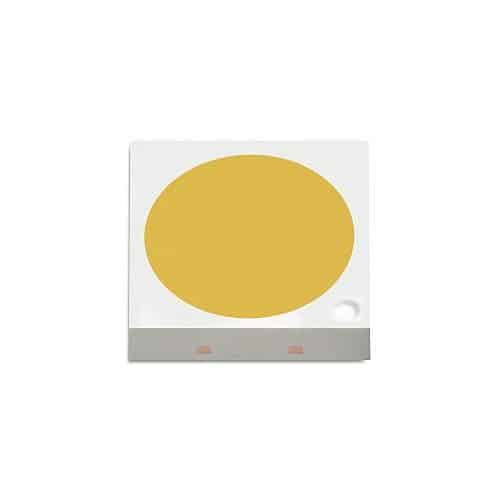

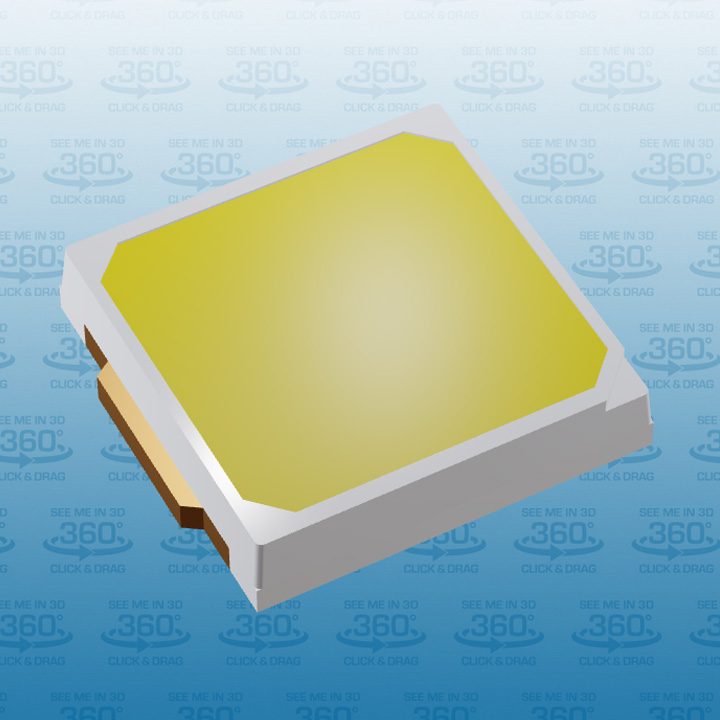

LUXEON 3030 2D is the first mid-power LED with hot-color targeting. Hot-color targeting ensures that the LEDs are within the color target at application conditions—85°C. Using industry-standard packaging of 3.0mm x 3.0mm and a 6V surface-mount emitter solution, LUXEON 3030 2D comes in all ANSI CCTs and delivers the efficacy and reliability required for both indoor and outdoor illumination markets.

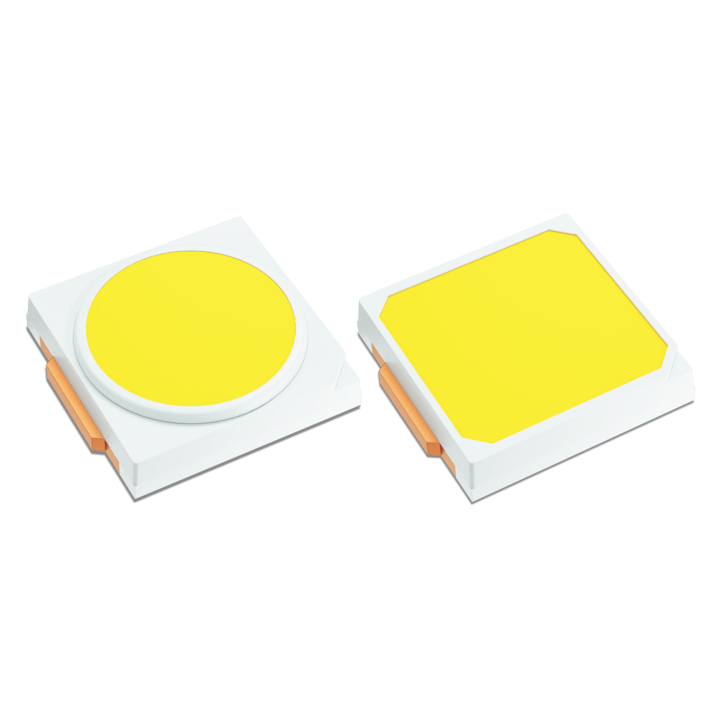

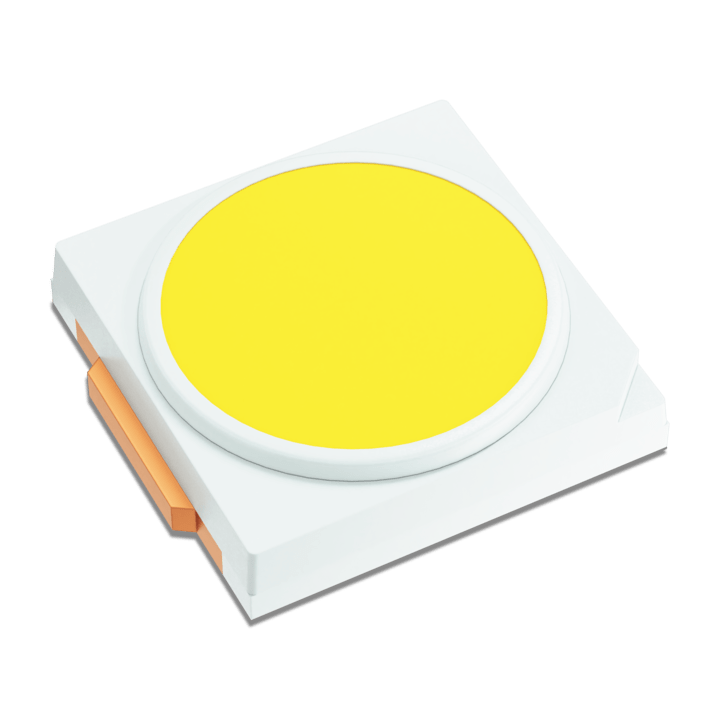

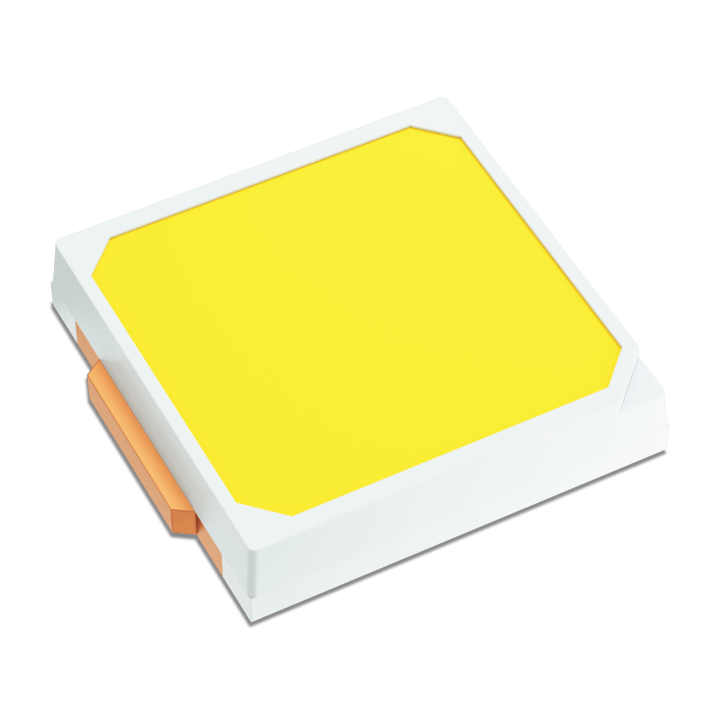

LUXEON 3030 2D Plus strengthens the robustness of the package and deliver even higher luminous efficacy for outdoor and industry applications.
This go to 3030 mid-power package delivers high value flux and efficacy with proven longevity and robustness.
For dimming applications that require extremely uniform light output while dimming. Top notch lm/W performance, lifetime, and pure 3 SDCM color bin with 0.1 Vf width.
High voltage, low current package compatible with more efficient and cost effective drivers. 1/9th micro-color binned for tight color control and hot-color targeted - 85°C.
Widely available, this top performing broad-spectrum white light delivers top rated μmol/J and PPF (μmol/s) performance and long lifetime with CCTs ranging from 2200K to 6500K.
Industry-leading 3030 performance. The go-to solution when top flux and efficacy are required. Use indoor and outdoor with full CRI and CCT coverage and 2 or 3 SDCM.
3030 2D Parts | 3030 2D Plus Parts
Product performance of LUXEON 3030 2D Line at 120mA and 65mA at specified temperature.
| Product | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Typical Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Part Number | |
|---|---|---|---|---|---|---|---|---|
| Minimum | Typical | |||||||
| 120mA | 65mA | |||||||
| 3030 2D Round | 3000K | 70 | 98 | 129.5 | 180 | 74 | 199 | L130-3070003000W21 |
| 3500K | 70 | 100 | 130 | 181 | 74 | 200 | L130-3570003000W21 | |
| 4000K | 70 | 101 | 133 | 185 | 76 | 205 | L130-4070003000W21 | |
| 5000K | 70 | 101 | 132.5 | 184 | 76 | 205 | L130-5070003000W21 | |
| 5700K | 70 | 101 | 131.5 | 183 | 75 | 202 | L130-5770003000W21 | |
| 6500K | 70 | 101 | 128 | 178 | 73 | 197 | L130-6570003000W21 | |
| 2200K | 80 | 80 | 95 | 132 | 54 | 146 | L130-2280003000W21 | |
| 2700K | 80 | 80 | 114 | 158 | 65 | 175 | L130-2780003000W21 | |
| 3000K | 80 | 85 | 117 | 163 | 67 | 180 | L130-3080003000W21 | |
| 3500K | 80 | 85 | 121 | 168 | 69 | 186 | L130-3580003000W21 | |
| 4000K | 80 | 90 | 124 | 172 | 71 | 191 | L130-4080003000W21 | |
| 5000K | 80 | 90 | 123 | 171 | 70 | 189 | L130-5080003000W21 | |
| 5700K | 80 | 90 | 122.5 | 170 | 70 | 188 | L130-5780003000W21 | |
| 6500K | 80 | 90 | 122 | 169 | 70 | 188 | L130-6580003000W21 | |
| 2700K | 90 | 72 | 91 | 126 | 52 | 140 | L130-2790003000W21 | |
| 3000K | 90 | 75 | 94 | 131 | 54 | 145 | L130-3090003000W21 | |
| 3500K | 90 | 75 | 96 | 133 | 55 | 148 | L130-3590003000W21 | |
| 4000K | 90 | 75 | 102 | 142 | 58 | 157 | L130-4090003000W21 | |
| 5000K | 90 | 75 | 100 | 139 | 57 | 154 | L130-5090003000W21 | |
| 3030 2D Square | 2200K | 70 | 103 | 112 | 156 | 64 | 172 | L130-2270003000X21 |
| 2700K | 70 | 114 | 124.5 | 173 | 71 | 192 | L130-2770003000X21 | |
| 3000K | 70 | 110 | 128.5 | 178 | 73 | 198 | L130-3070003000X21 | |
| 3500K | 70 | 111 | 131 | 182 | 75 | 202 | L130-3570003000X21 | |
| 4000K | 70 | 117 | 136 | 189 | 78 | 209 | L130-4070003000X21 | |
| 5000K | 70 | 117 | 135 | 188 | 77 | 208 | L130-5070003000X21 | |
| 5700K | 70 | 117 | 133.5 | 185 | 76 | 205 | L130-5770003000X21 | |
| 6500K | 70 | 111 | 133 | 185 | 76 | 205 | L130-6570003000X21 | |
| 2200K | 80 | 89 | 98 | 136 | 56 | 151 | L130-2280003000X21 | |
| 2700K | 80 | 101 | 114 | 158 | 65 | 175 | L130-2780003000X21 | |
| 3000K | 80 | 102 | 117.5 | 163 | 67 | 181 | L130-3080003000X21 | |
| 3500K | 80 | 107 | 121.5 | 169 | 69 | 187 | L130-3580003000X21 | |
| 4000K | 80 | 110 | 125.5 | 174 | 72 | 193 | L130-4080003000X21 | |
| 5000K | 80 | 110 | 125 | 174 | 71 | 192 | L130-5080003000X21 | |
| 5700K | 80 | 110 | 125 | 174 | 71 | 192 | L130-5780003000X21 | |
| 6500K | 80 | 110 | 124.3 | 173 | 71 | 191 | L130-6580003000X21 | |
| 2700K | 90 | 86 | 97 | 135 | 55 | 149 | L130-2790003000X21 | |
| 3000K | 90 | 88 | 100 | 139 | 57 | 154 | L130-3090003000X21 | |
| 3500K | 90 | 91 | 102 | 142 | 58 | 157 | L130-3590003000X21 | |
| 4000K | 90 | 94 | 107 | 149 | 61 | 165 | L130-4090003000X21 | |
| 5000K | 90 | 94 | 107 | 149 | 61 | 165 | L130-5090003000X21 | |
| 5700K | 90 | 94 | 106 | 147 | 60 | 163 | L130-5790003000X21 | |
| 6500K | 90 | 94 | 106 | 147 | 60 | 163 | L130-6590003000X21 | |
Product performance of LUXEON 3030 2D Plus Line at 120mA and 65mA at specified temperature.
| PRODUCT | NOMINAL CCT | MINIMUM CCT | LUMINOUS FLUX (lm) | TYPICAL LUMIOUS EFFICACY (lm/W) | TYPICAL LUMINOUS FLUX (lm) | TYPICAL LUMIOUS EFFICACY (lm/W) | PART NUMBER | |
|---|---|---|---|---|---|---|---|---|
| MINIMUM | TYPICAL | |||||||
| 120mA | 65mA | |||||||
| LUXEON 3030 2D Plus Round | 2200K | 70 | 104 | 113 | 156 | 64 | 173 | L130-2270003000Y21 |
| 2700K | 70 | 114 | 124 | 172 | 71 | 191 | L130-2770003000Y21 | |
| 3000K | 70 | 118 | 129 | 179 | 74 | 198 | L130-3070003000Y21 | |
| 3500K | 70 | 121 | 131 | 182 | 75 | 202 | L130-3570003000Y21 | |
| 4000K | 70 | 123 | 134 | 185 | 76 | 205 | L130-4070003000Y21 | |
| 5000K | 70 | 123 | 134 | 185 | 76 | 205 | L130-5070003000Y21 | |
| 5700K | 70 | 123 | 133 | 185 | 76 | 205 | L130-5770003000Y21 | |
| 6500K | 70 | 122 | 132 | 183 | 75 | 203 | L130-6570003000Y21 | |
| 2200K | 80 | 92 | 100 | 139 | 57 | 154 | L130-2280003000Y21 | |
| 2700K | 80 | 103 | 112 | 156 | 64 | 172 | L130-2780003000Y21 | |
| 3000K | 80 | 107 | 116 | 160 | 66 | 178 | L130-3080003000Y21 | |
| 3500K | 80 | 112 | 121 | 168 | 69 | 186 | L130-3580003000Y21 | |
| 4000K | 80 | 115 | 125 | 173 | 71 | 192 | L130-4080003000Y21 | |
| 5000K | 80 | 115 | 125 | 173 | 71 | 192 | L130-5080003000Y21 | |
| 5700K | 80 | 115 | 125 | 173 | 71 | 192 | L130-5780003000Y21 | |
| 6500K | 80 | 113 | 123 | 171 | 70 | 189 | L130-6580003000Y21 | |
| 2700K | 90 | 90 | 98 | 135 | 56 | 150 | L130-2790003000Y21 | |
| 3000K | 90 | 91 | 99 | 138 | 56 | 152 | L130-3090003000Y21 | |
| 3500K | 90 | 93 | 101 | 140 | 58 | 155 | L130-3590003000Y21 | |
| 4000K | 90 | 96 | 104 | 144 | 59 | 160 | L130-4090003000Y21 | |
| 5000K | 90 | 96 | 104 | 144 | 59 | 160 | L130-5090003000Y21 | |
| 5700K | 90 | 97 | 105 | 146 | 60 | 162 | L130-5790003000Y21 | |
| 6500K | 90 | 95 | 103 | 143 | 59 | 158 | L130-6590003000Y21 | |
| LUXEON 3030 2D Plus Square | 2200K | 70 | 106 | 115 | 168 | 66 | 182 | L130-2270003000Z21 |
| 2700K | 70 | 118 | 128.5 | 188 | 73 | 204 | L130-2770003000Z21 | |
| 3000K | 70 | 121 | 131.5 | 192 | 75 | 209 | L130-3070003000Z21 | |
| 3500K | 70 | 125 | 136 | 199 | 78 | 216 | L130-3570003000Z21 | |
| 4000K | 70 | 127 | 138.5 | 202 | 79 | 220 | L130-4070003000Z21 | |
| 5000K | 70 | 127 | 138 | 202 | 79 | 219 | L130-5070003000Z21 | |
| 5700K | 70 | 125 | 135.5 | 198 | 77 | 215 | L130-5770003000Z21 | |
| 6500K | 70 | 125 | 135.5 | 198 | 77 | 215 | L130-6570003000Z21 | |
| 2200K | 80 | 93 | 101 | 148 | 58 | 160 | L130-2280003000Z21 | |
| 2700K | 80 | 108 | 117 | 171 | 67 | 186 | L130-2780003000Z21 | |
| 3000K | 80 | 110 | 119.5 | 175 | 68 | 189 | L130-3080003000Z21 | |
| 3500K | 80 | 116 | 126 | 184 | 72 | 200 | L130-3580003000Z21 | |
| 4000K | 80 | 118 | 128 | 187 | 73 | 203 | L130-4080003000Z21 | |
| 5000K | 80 | 118 | 128.5 | 188 | 73 | 204 | L130-5080003000Z21 | |
| 5700K | 80 | 118 | 128 | 187 | 73 | 203 | L130-5780003000Z21 | |
| 6500K | 80 | 118 | 128 | 187 | 73 | 203 | L130-6580003000Z21 | |
| 2700K | 90 | 91 | 99 | 145 | 56 | 157 | L130-2790003000Z21 | |
| 3000K | 90 | 96 | 104 | 152 | 59 | 165 | L130-3090003000Z21 | |
| 3500K | 90 | 98 | 106 | 155 | 60 | 168 | L130-3590003000Z21 | |
| 4000K | 90 | 100 | 108 | 158 | 62 | 171 | L130-4090003000Z21 | |
| 5000K | 90 | 100 | 108 | 158 | 62 | 171 | L130-5090003000Z21 | |
| 5700K | 90 | 101 | 110 | 161 | 63 | 174 | L130-5790003000Z21 | |
| 6500K | 90 | 101 | 109.5 | 160 | 62 | 174 | L130-6590003000Z21 | |
Application Brief | Doc Number | Title | Last Modified |
|---|---|---|
| AB207 | LUXEON 3030 and SunPlus 3030 Application Brief | maj 19, 2025 |
| AB06 | LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress | cze 5, 2017 |
Case Study | Doc Number | Title | Last Modified |
|---|---|---|
| CS117 | Comfort Meets Sustainability at UK’s Ealing Hospital | mar 16, 2016 |
Datasheets | Doc Number | Title | Last Modified |
|---|---|---|
| DS207 | LUXEON 3030 2D Line Product Datasheet | lip 25, 2023 |
Product Brief | Doc Number | Title | Last Modified |
|---|---|---|
| PB207 | LUXEON 3030 2D Line Product Brief | lip 25, 2023 |
White Paper | Doc Number | Title | Last Modified |
|---|---|---|
| WP32 | Narrow Red Phosphor Technology | gru 2, 2016 |
| LL ID | File format | Title | Products | Modified |
|---|---|---|---|---|
| DRE1896 | Altium Designer | LUXEON 3030 Series Altium | L130-xxxx003000W21 L130-xxxxHB30000B1 L130-xxxx0BHV00001 L130-xxxxHA30000B1 More Products | 09/22/2020 |
| DRE1897 | Gerber | LUXEON 3030 Series Gerber | L130-xxxx003000X21 L130-xxxx003000W21 L130-xxxx0BHV00001 L130-xxxxHB30000B1 More Products | 09/22/2020 |
| LL ID | File format | Title | Products | Modified |
|---|---|---|---|---|
| DRM3169 | STEP | LUXEON 3030 2D Plus Round STEP | L130-xxxx003000Y21 | 05/20/2025 |
| DRM3170 | STEP | LUXEON 3030 2D Plus Square STEP | L130-xxxx003000Z21 | 05/20/2025 |
| DRM3167 | STEP | LUXEON 3030 2D Round & LUXEON 3030 HV STEP | L130-xxxx003000W21 L130-xxxx0CHV00001 L130-xxxx0BHV00001 | 11/25/2019 |
| DRM3168 | STEP | LUXEON 3030 2D Square & LUXEON 3030 HE STEP | L130-xxxxHB30000B1 L130-xxxx003000X21 | 09/22/2020 |
In order to properly use the optical design resource file below, please download the README file for instructions. | LL ID | File format | Title | Products | Modified |
|---|---|---|---|---|
| DRO3169 | ASAP | LUXEON 3030 2D (Square LES) ASAP 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3170 | IES TM-25 | LUXEON 3030 2D (Square LES) IES TM-25 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3177 | ProSource rs8 | LUXEON 3030 2D (Square LES) in Prosource rs8 format | L130-xxxx003000X21 | 04/16/2018 |
| DRO3171 | LightTools | LUXEON 3030 2D (Square LES) LightTools Binary 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3172 | LucidShape | LUXEON 3030 2D (Square LES) LucidShape 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3173 | Optis | LUXEON 3030 2D (Square LES) Optis 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3174 | Photopia | LUXEON 3030 2D (Square LES) Photopia 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3175 | TracePro | LUXEON 3030 2D (Square LES) TracePro Binary 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO3176 | Zemax | LUXEON 3030 2D (Square LES) Zemax 5M rays | L130-xxxx003000X21 | 04/16/2018 |
| DRO1850 | ProSource rs8 | LUXEON 3030 2D 2700K 80 CRI color scan in rs8 format | L130-xxxx003000W21 | 03/21/2017 |
| DRO1856 | ASAP | LUXEON 3030 2D 6V ASAP 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO1857 | LightTools | LUXEON 3030 2D 6V LightTools 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO2588 | LucidShape | LUXEON 3030 2D 6V LucidShape 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO1858 | OPTIS/SPEOS | LUXEON 3030 2D 6V Optis/SPEOS 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO2589 | Photopia | LUXEON 3030 2D 6V Photopia 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO1859 | TracePro | LUXEON 3030 2D 6V TracePro Binary 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO1860 | Zemax | LUXEON 3030 2D 6V Zemax 5M rays | L130-xxxx003000W21 | 03/07/2016 |
| DRO-RM-3030 2D Plus_Round | All Available Types | LUXEON 3030 2D Plus Round Optical Rayset Readme | L130-xxxx003000Y21 | 05/19/2025 |
| DRO-RM-3030 2D Plus _Square | All Available Types | LUXEON 3030 2D Plus Square Optical Rayset Readme | L130-xxxx003000Z21 | 05/19/2025 |
| LL ID | Title | Part Numbers | Report Date |
|---|---|---|---|
| PTR-07 |  LUXEON 3030 2D (Round & Square)_3030 2D Plus (Square)_3030 HE_3030 HE Plus_3030 HE Plus Deep Dimming | L130-xxxx003000W21 L130-xxxx003000X21 L130-xxxx003000Z21 L130-xxxxHx30000x1 L130-xxxxHA3000DD1 | lis 27, 2023 |
| PTR-64 | LUXEON 3030 2D Plus (Round) | L130-xxxx003000Y21 | maj 20, 2025 |
