LUXEON 5050

LUXEON 5050 High Output White LEDs

LUXEON 5050 LEDs are a multi-die, high power LED package that provides high power white luminance from a super robust package to enable cost effective, single optic and directional fixture designs. LUXEON 5050 uses an industry standard 5050 surface mount package with a small Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

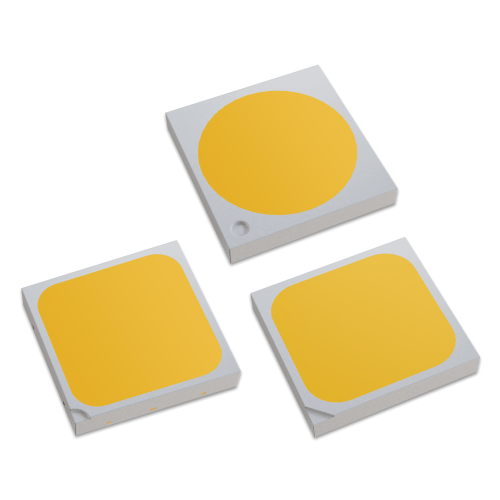

Round Parts | Square Parts | HE Parts

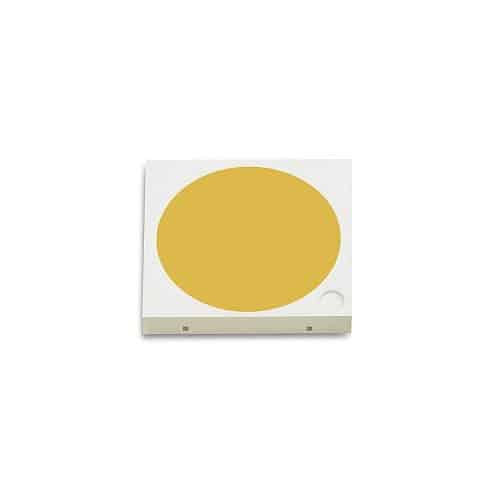

5050 Round Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

Part	Nominal CCT	Minimum CRI	Luminous Flux (lm)		Typical Luminous Efficacy (lm/W)	Luminous Flux (lm)	Typical Luminous Efficacy (lm/W)	Part Number
			Minimum	Typical	Typical Luminous Efficacy (lm/W)	Typical	Typical Luminous Efficacy (lm/W)
			rated current [4]			50% of rated current [4]
Round 24V	2200K	70	515	587	150	315	172	L150-2270502400000
	2700K	70	535	640	164	343	187	L150-2770502400000
	3000K	70	553	667	171	357	195	L150-3070502400000
	3500K	70	600	686	176	368	201	L150-3570502400000
	4000K	70	580	693	178	371	203	L150-4070502400000
	5000K	70	580	693	178	371	203	L150-5070502400000
	5700K	70	570	683	175	366	200	L150-5770502400000
	6500K	70	570	667	173	363	198	L150-6570502400000
	2200K	80	440	500	128	268	146	L150-2280502400000
	2700K	80	500	572	147	307	168	L150-2780502400000
	3000K	80	516	595	152	319	174	L150-3080502400000
	3500K	80	527	605	155	324	177	L150-3580502400000
	4000K	80	539	630	161	338	185	L150-4080502400000
	5000K	80	539	630	161	338	185	L150-5080502400000
	5700K	80	539	617	158	331	181	L150-5780502400000
	6500K	80	539	615	158	330	180	L150-6580502400000
	2700K	90	414	475	122	255	139	L150-2790502400000
	3000K	90	428	490	126	263	144	L150-3090502400000
	3500K	90	445	510	131	273	149	L150-3590502400000
	4000K	90	456	530	136	284	155	L150-4090502400000
	5000K	90	456	530	136	284	155	L150-5090502400000
	5700K	90	456	530	136	284	155	L150-5790502400000
Round 6V	2200K	70	515	587	150	315	172	L150-2270500600000
	2700K	70	535	640	164	343	187	L150-2770500600000
	3000K	70	553	667	171	357	195	L150-3070500600000
	3500K	70	600	685	176	368	201	L150-3570500600000
	4000K	70	580	693	178	371	203	L150-4070500600000
	5000K	70	580	693	178	371	203	L150-5070500600000
	5700K	70	570	683	175	366	200	L150-5770500600000
	6500K	70	570	677	173	363	196	L150-6570500600000
	2200K	80	440	500	128	268	146	L150-2280500600000
	2700K	80	500	572	147	307	168	L150-2780500600000
	3000K	80	516	595	152	319	174	L150-3080500600000
	3500K	80	527	605	155	324	177	L150-3580500600000
	4000K	80	539	630	161	338	185	L150-4080500600000
	5000K	80	539	630	161	338	185	L150-5080500600000
	5700K	80	539	617	158	331	181	L150-5780500600000
	6500K	80	539	615	158	330	180	L150-6580500600000
	2700K	90	414	475	122	255	139	L150-2790500600000
	3000K	90	428	490	126	263	144	L150-3090500600000
	3500K	90	445	510	131	273	149	L150-3590500600000
	4000K	90	456	530	136	284	155	L150-4090500600000
	5000K	90	456	530	136	284	155	L150-5090500600000
	5700K	90	456	530	136	284	155	L150-5790500600000

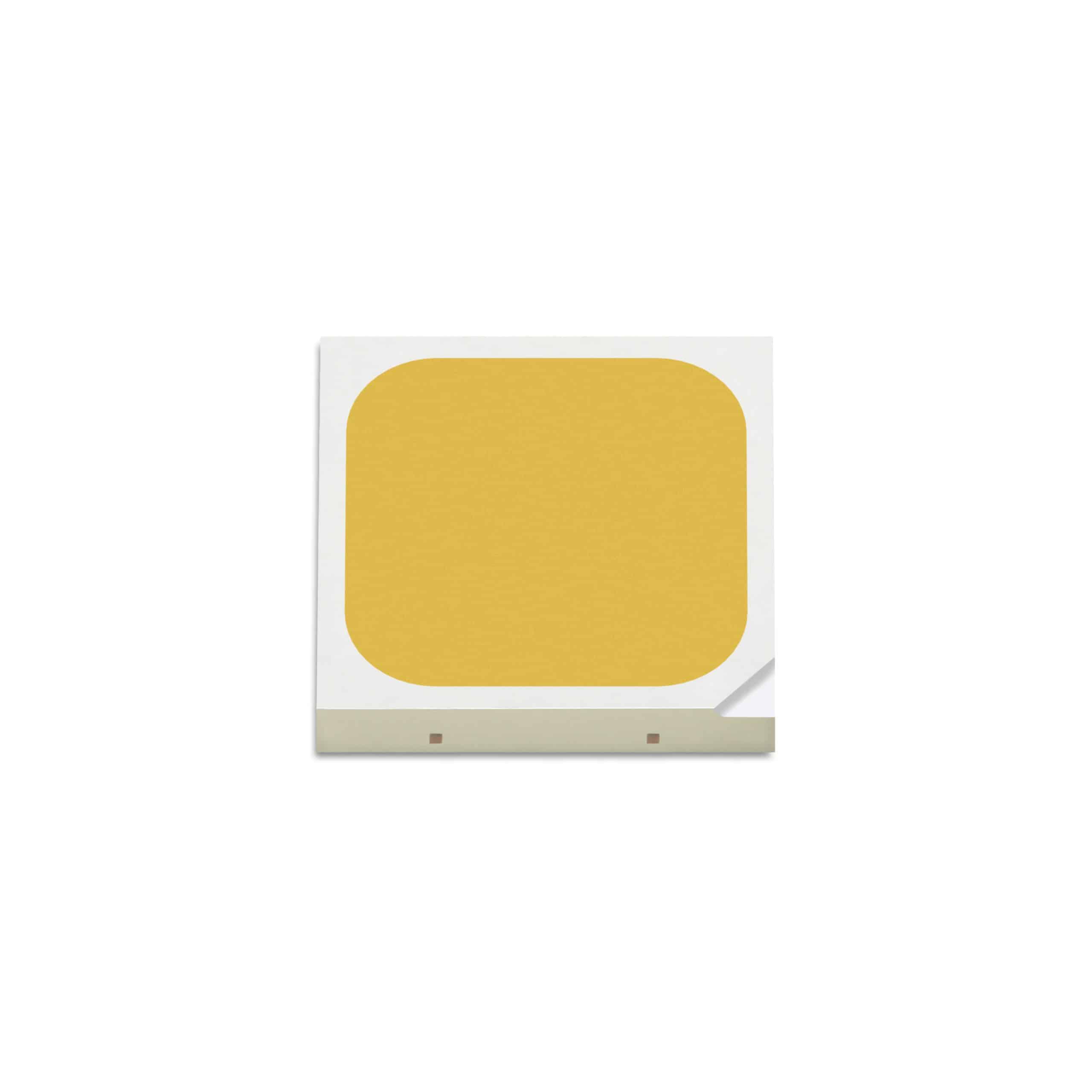

5050 Square Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

Part	Nominal CCT	Minimum CRI	Luminous Flux (lm)		Typical Luminous Efficacy (lm/W)	Luminous Flux (lm)	Typical Luminous Efficacy (lm/W)	Part Number
			Minimum	Typical	Typical Luminous Efficacy (lm/W)	Typical	Typical Luminous Efficacy (lm/W)
			rated current [4]			50% of rated current [4]
Square LES – 30V	2200K	70	621	695	143	373	163	L150-22705030000S0
	2700K	70	693	775	159	416	181	L150-27705030000S0
	3000K	70	720	803	165	431	188	L150-30705030000S0
	3500K	70	729	815	168	437	191	L150-35705030000S0
	4000K	70	743	835	172	448	195	L150-40705030000S0
	5000K	70	743	833	171	447	195	L150-50705030000S0
	5700K	70	738	823	169	442	193	L150-57705030000S0
	6500K	70	720	803	165	431	188	L150-65705030000S0
	2200K	80	586	630	130	338	147	L150-22805030000S0
	2700K	80	650	695	143	373	163	L150-27805030000S0
	3000K	80	665	730	150	392	171	L150-30805030000S0
	3500K	80	679	735	151	394	172	L150-35805030000S0
	4000K	80	700	768	158	412	180	L150-40805030000S0
	5000K	80	702	768	158	412	180	L150-50805030000S0
	5700K	80	700	768	158	412	180	L150-57805030000S0
	6500K	80	688	740	152	397	173	L150-65805030000S0
	2700K	90	558	600	123	322	140	L150-27905030000S0
	3000K	90	586	630	130	338	147	L150-30905030000S0
	3500K	90	600	640	132	343	150	L150-35905030000S0
	4000K	90	609	655	135	352	153	L150-40905030000S0
	5000K	90	618	665	137	357	156	L150-50905030000S0
	5700K	90	605	650	134	349	152	L150-57905030000S0
Square LES – 6V	2200K	70	621	695	143	373	163	L150-22705006000S0
	2700K	70	693	775	159	416	181	L150-27705006000S0
	3000K	70	720	803	165	431	188	L150-30705006000S0
	3500K	70	729	815	168	437	191	L150-35705006000S0
	4000K	70	743	835	172	448	195	L150-40705006000S0
	5000K	70	743	833	171	447	195	L150-50705006000S0
	5700K	70	738	823	169	442	193	L150-57705006000S0
	6500K	70	720	803	165	431	188	L150-65705006000S0
	2200K	80	586	630	130	338	147	L150-22805006000S0
	2700K	80	650	695	143	373	163	L150-27805006000S0
	3000K	80	665	730	150	392	171	L150-30805006000S0
	3500K	80	679	735	151	394	172	L150-35805006000S0
	4000K	80	700	768	158	412	180	L150-40805006000S0
	5000K	80	702	768	158	412	180	L150-50805006000S0
	5700K	80	700	768	158	412	180	L150-57805006000S0
	6500K	80	688	740	152	397	173	L150-65805006000S0
	2700K	90	558	600	123	322	140	L150-27905006000S0
	3000K	90	586	630	130	338	147	L150-30905006000S0
	3500K	90	600	640	132	343	150	L150-35905006000S0
	4000K	90	609	655	135	352	153	L150-40905006000S0
	5000K	90	618	665	137	357	156	L150-50905006000S0
	5700K	90	605	650	134	349	152	L150-57905006000S0

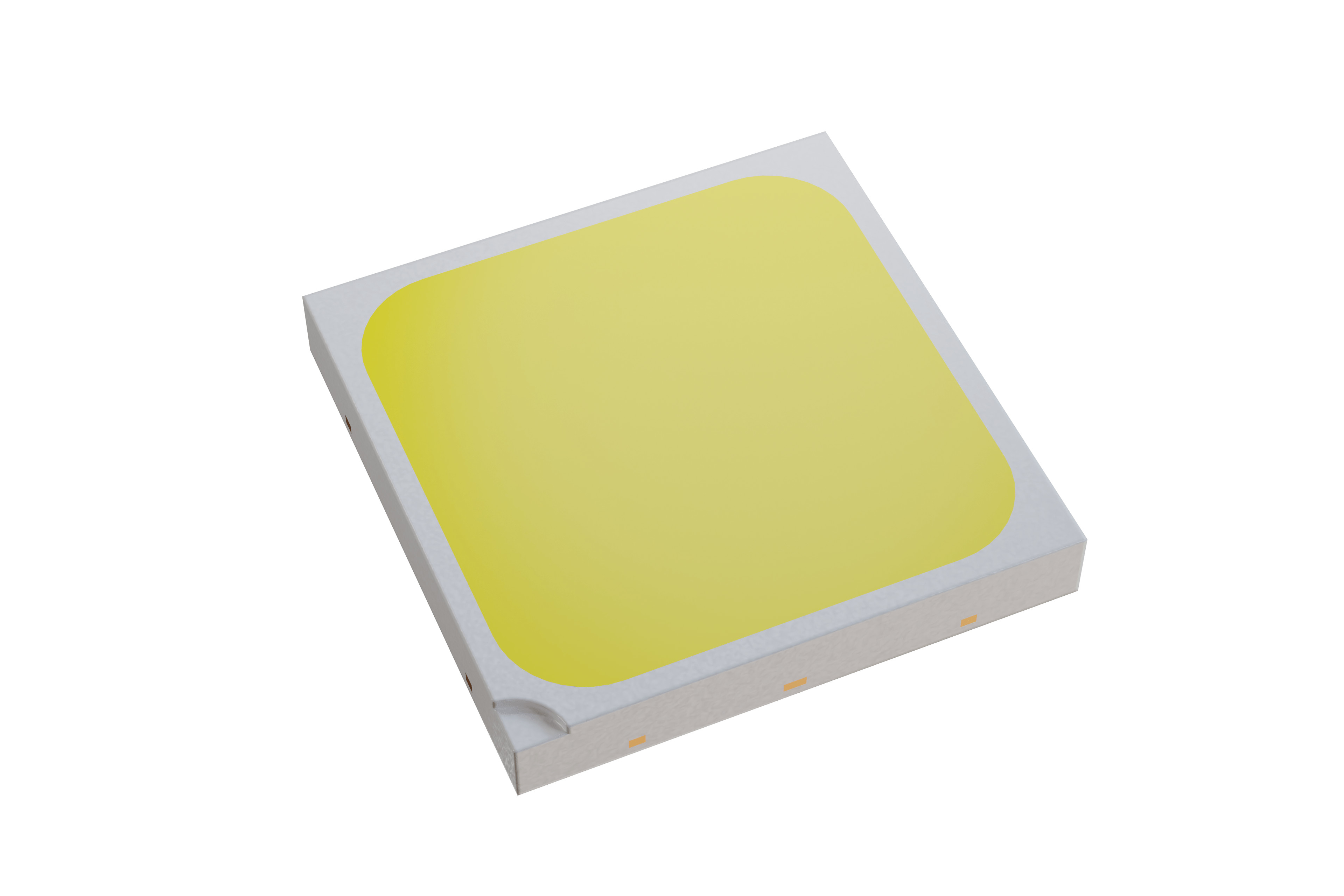

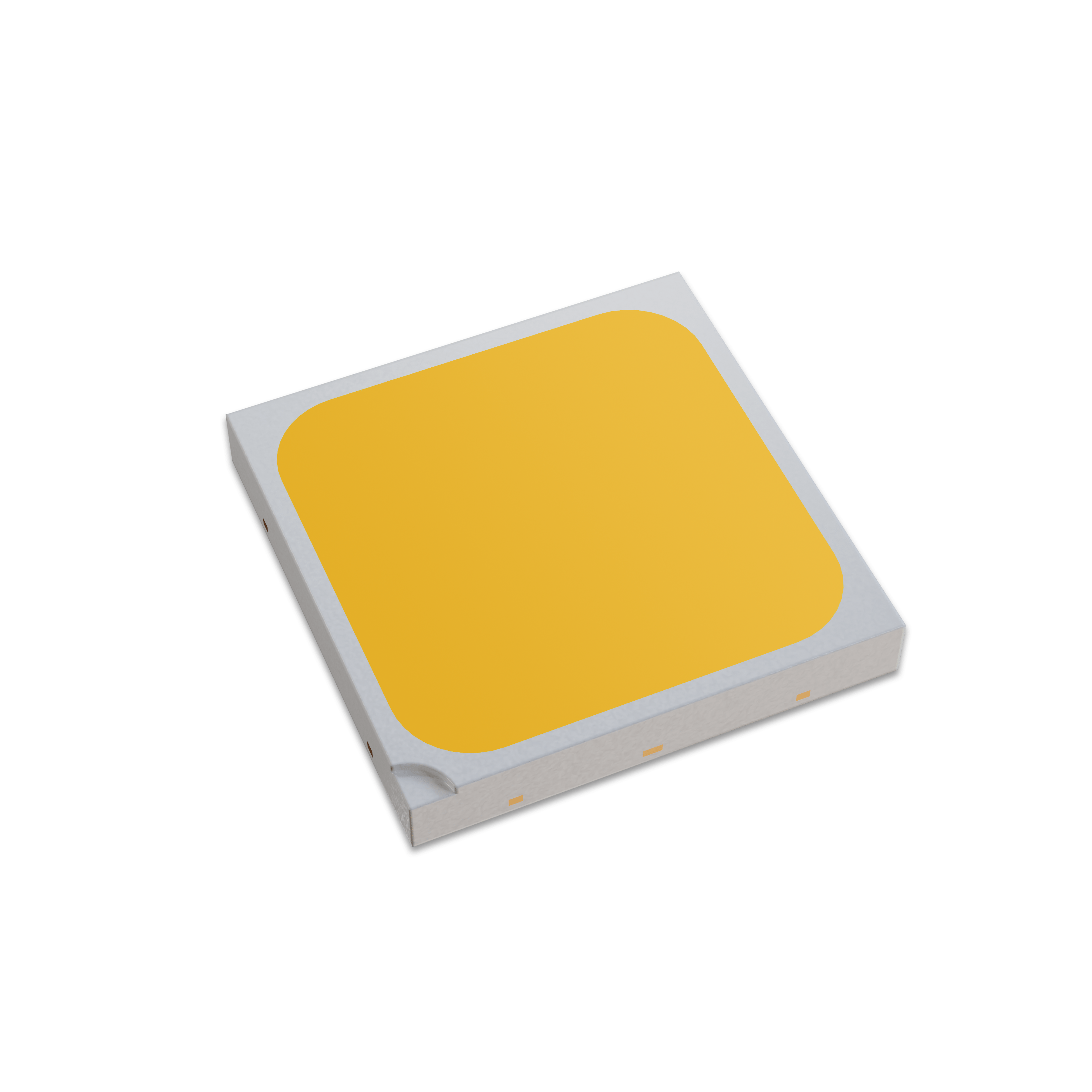

5050 HE Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

Part	Nominal CCT	Minimum CRI	Luminous Flux (lm)		Typical Luminous Efficacy (lm/W)	Luminous Flux (lm)	Typical Luminous Efficacy (lm/W)	Part Number
			Minimum	Typical	Typical Luminous Efficacy (lm/W)	Typical	Typical Luminous Efficacy (lm/W)
			rated current [4]			50% of rated current [4]
HE 24V	2200K	70	544	585	151	312	171	L150-22705024000H0
	2700K	70	602	647	167	345	189	L150-27705024000H0
	3000K	70	623	670	173	357	195	L150-30705024000H0
	3500K	70	632	680	176	362	198	L150-35705024000H0
	4000K	70	651	700	181	373	204	L150-40705024000H0
	5000K	70	651	700	181	373	204	L150-50705024000H0
	5700K	70	640	688	178	366	201	L150-57705024000H0
	6500K	70	637	685	177	365	200	L150-65705024000H0
	2200K	80	474	510	132	272	149	L150-22805024000H0
	2700K	80	539	580	150	309	169	L150-27805024000H0
	3000K	80	563	605	156	322	176	L150-30805024000H0
	3500K	80	586	630	163	336	184	L150-35805024000H0
	4000K	80	597	642	166	342	187	L150-40805024000H0
	5000K	80	597	642	166	342	187	L150-50805024000H0
	5700K	80	595	640	165	341	187	L150-57805024000H0
	6500K	80	586	630	163	336	184	L150-65805024000H0
	2700K	90	465	500	129	266	146	L150-27905024000H0
	3000K	90	485	522	135	278	152	L150-30905024000H0
	3500K	90	502	540	139	288	158	L150-35905024000H0
	4000K	90	512	550	142	293	160	L150-40905024000H0
	5000K	90	512	550	142	293	160	L150-50905024000H0
	5700K	90	512	550	142	293	160	L150-57905024000H0
HE 6V	2200K	70	544	585	151	312	171	L150-22705006000H0
	2700K	70	602	647	167	345	189	L150-27705006000H0
	3000K	70	623	670	173	357	195	L150-30705006000H0
	3500K	70	632	680	176	362	198	L150-35705006000H0
	4000K	70	651	700	181	373	204	L150-40705006000H0
	5000K	70	651	700	181	373	204	L150-50705006000H0
	5700K	70	640	688	178	366	201	L150-57705006000H0
	6500K	70	637	685	177	365	200	L150-65705006000H0
	2200K	80	474	510	132	272	149	L150-22805006000H0
	2700K	80	539	580	150	309	169	L150-27805006000H0
	3000K	80	563	605	156	322	176	L150-30805006000H0
	3500K	80	586	630	163	336	184	L150-35805006000H0
	4000K	80	597	642	166	342	187	L150-40805006000H0
	5000K	80	597	642	166	342	187	L150-50805006000H0
	5700K	80	595	640	165	341	187	L150-57805006000H0
	6500K	80	586	630	163	336	184	L150-65805006000H0
	2700K	90	465	500	129	266	146	L150-27905006000H0
	3000K	90	485	522	135	278	152	L150-30905006000H0
	3500K	90	502	540	139	288	158	L150-35905006000H0
	4000K	90	512	550	142	293	160	L150-40905006000H0
	5000K	90	512	550	142	293	160	L150-50905006000H0
	5700K	90	512	550	142	293	160	L150-57905006000H0

Documentation

Application Brief

Doc Number	Title	Size (KB)	Last Modified
AB174	LUXEON 5050 and SunPlus 5050 Application Brief	1,592	paź 20, 2019
AB06	LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress	1,417	cze 5, 2017

Datasheets

Doc Number

Title

Size (KB)

Last Modified

DS174 LUXEON 5050 Product Datasheet 2,496 wrz 12, 2022
Guides and Brochures

Doc Number

Title

Size (KB)

Last Modified

BR45 Sports Lighting Solutions Brochure 18,094 lis 7, 2018
Product Brief

Doc Number

Title

Size (KB)

Last Modified

PB174 PB174 LUXEON 5050 1,393 wrz 12, 2022

Doc Number	Title	Size (KB)	Last Modified
DS174	LUXEON 5050 Product Datasheet	2,496	wrz 12, 2022

Doc Number	Title	Size (KB)	Last Modified
BR45	Sports Lighting Solutions Brochure	18,094	lis 7, 2018

Doc Number	Title	Size (KB)	Last Modified
PB174	PB174 LUXEON 5050	1,393	wrz 12, 2022

Design Resources

Mechanical

LUXEON 5050

top

LL ID	File format	Title	Products	Modified	Size (MB)
DRM2998	STEP	LUXEON 5050 HE 3D Step File	L150-xxxx5024000H0 L150-xxxx5006000H0	11/08/2021	0.01
DRM2859	STEP	LUXEON 5050 Round 3D STEP	L150-xxxx502400000	08/22/2019	0.02
DRM3556	STEP	LUXEON 5050 Square STEP	L150-xxxx5030000S0 L150-xxxx5006000S0	08/22/2019	0.03

Optical

LUXEON 5050

top

In order to properly use the optical design resource file below, please download the for instructions.

LL ID	File format	Title	Products	Modified	Size (MB)
DRO3980	ASAP	LUXEON 5050 HE ASAP 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	133.50
DRO3981	IES TM-25	LUXEON 5050 HE IES TM-25 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	171.70
DRO3983	LightTools	LUXEON 5050 HE LightTools binary 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	133.50
DRO3982	LucidShape	LUXEON 5050 HE LucidShape 5M rays	L150-xxxx5006000H0 L150-xxxx5024000H0	11/09/2021	133.50
DRO3984	Optis	LUXEON 5050 HE Optis 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	152.60
DRO3985	Photopia	LUXEON 5050 HE Photopia 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	133.50
DRO3979	ProSource rsmx format	LUXEON 5050 HE ProSource rsmx	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	689.10
DRO3986	TracePro	LUXEON 5050 HE TracePro binary 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	133.50
DRO3987	Zemax	LUXEON 5050 HE Zemax 5M rays	L150-xxxx5024000H0 L150-xxxx5006000H0	11/09/2021	133.50
DRO3249	ProSource rs8	LUXEON 5050 Round 24V 4070 in Prosource rs8 format	L150-xxxx502400000	08/22/2019	635.84
DRO2852	ASAP	LUXEON 5050 Round 24V ASAP 5M Rays	L150-xxxx502400000	08/22/2019	133.52
DRO3250	IES TM-25	LUXEON 5050 Round 24V IES-TM25 5M rays	L150-xxxx502400000	08/22/2019	133.55
DRO2853	LightTools	LUXEON 5050 Round 24V LightTools Binary 5M Rays	L150-xxxx502400000	08/22/2019	133.51
DRO2854	LucidShape	LUXEON 5050 Round 24V LucidShape 5M Rays	L150-xxxx502400000	08/22/2019	133.51
DRO2855	Optis	LUXEON 5050 Round 24V Optis 5M Rays	L150-xxxx502400000	08/22/2019	152.59
DRO2856	Photopia	LUXEON 5050 Round 24V Photopia 5M Rays	L150-xxxx502400000	08/22/2019	133.52
DRO2857	TracePro	LUXEON 5050 Round 24V TracePro Binary 5M Rays	L150-xxxx502400000	08/22/2019	133.52
DRO2858	Zemax	LUXEON 5050 Round 24V Zemax 5M Rays	L150-xxxx502400000	08/22/2019	133.52
DRO2910	ProSource rs8	LUXEON 5050 Round 6V 2700K 80CRI Prosource rs8 format	L150-xxxx500600000	08/22/2019	643.22
DRO2903	ASAP	LUXEON 5050 Round 6V ASAP 5M rays	L150-xxxx500600000	08/22/2019	133.51
DRO3251	IES TM-25	LUXEON 5050 Round 6V IES-TM25 5M rays	L150-xxxx500600000	08/22/2019	133.55
DRO2904	LightTools	LUXEON 5050 Round 6V LightTools Binary 5M rays	L150-xxxx500600000	08/22/2019	133.51
DRO2905	LucidShape	LUXEON 5050 Round 6V LucidShape 5M rays	L150-xxxx500600000	08/22/2019	133.51
DRO2906	Optis	LUXEON 5050 Round 6V OPTIS 5M rays	L150-xxxx500600000	08/22/2019	152.58
DRO2907	Photopia	LUXEON 5050 Round 6V Photopia 5M rays	L0F2-B445050002751	08/22/2019	133.51
DRO2908	TracePro	LUXEON 5050 Round 6V TracePro Binary 5M rays	L150-xxxx500600000	08/22/2019	133.51
DRO2909	Zemax	LUXEON 5050 Round 6V Zemax 5M rays	L150-xxxx500600000	08/22/2019	133.51
DRO3557	ProSource rs8	LUXEON 5050 Square 30V 4070 in ProSource rs8 format	L150-xxxx5030000S0	08/22/2019	454.02
DRO3558	ASAP	LUXEON 5050 Square 30V ASAP 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3559	IES TM-25	LUXEON 5050 Square 30V IES TM-25 5M rays	L150-xxxx5030000S0	08/22/2019	133.55
DRO3560	LightTools	LUXEON 5050 Square 30V LightTools Binary 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3561	LucidShape	LUXEON 5050 Square 30V LucidShape 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3562	Optis	LUXEON 5050 Square 30V Optis 5M rays	L150-xxxx5030000S0	08/22/2019	152.59
DRO3563	Photopia	LUXEON 5050 Square 30V Photopia 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3564	TracePro	LUXEON 5050 Square 30V TracePro Binary 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3565	Zemax	LUXEON 5050 Square 30V Zemax 5M rays	L150-xxxx5030000S0	08/22/2019	133.51
DRO3566	ProSource rs8	LUXEON 5050 Square 6V 4070 in ProSource rs8 format	L150-xxxx5006000S0	08/22/2019	416.79
DRO3567	ASAP	LUXEON 5050 Square 6V ASAP 5M rays	L150-xxxx5006000S0	08/22/2019	133.51
DRO3568	IES TM-25	LUXEON 5050 Square 6V IES TM-25 5M rays	L150-xxxx5006000S0	08/22/2019	133.55
DRO3569	LightTools	LUXEON 5050 Square 6V LightTools Binary 5M rays	L150-xxxx5006000S0	08/22/2019	133.51
DRO3570	LucidShape	LUXEON 5050 Square 6V LucidShape 5M rays	L150-xxxx5006000S0	08/22/2019	133.51
DRO3571	Optis	LUXEON 5050 Square 6V Optis 5M rays	L150-xxxx5006000S0	08/22/2019	152.59
DRO3572	Photopia	LUXEON 5050 Square 6V Photopia 5M rays	L150-xxxx5006000S0	08/22/2019	133.51
DRO3573	TracePro	LUXEON 5050 Square 6V TracePro Binary 5M rays	L150-xxxx5006000S0	08/22/2019	133.51
DRO3574	Zemax	LUXEON 5050 Square 6V Zemax 5M rays	L150-xxxx5006000S0	08/22/2019	133.51

PhotoBiological Test Reports

LUXEON 5050

LL ID	Title	Part Numbers	Size (KB)	Report Date
PTR-16	LUXEON 5050 (Round)	L150-xxxx50xx00000	1,693	maj 25, 2021
PTR-17	LUXEON 5050 (Square)	L150-xxxx50xx000S0	429	lip 8, 2019
PTR-52	LUXEON 5050 HE	L150-xxxx5024000H0 L150-xxxx5006000H0	994	wrz 15, 2021

How to Buy

Zero Worry Lead Time

Features & Benefits

Superior lm/W enables outstanding efficacy in end application
Extremely reliable package design affirms long lifetime in harsh environments
Robust coating design for enhanced sulfur protection capability (LUXEON 5050 Square LES)
Two voltage configurations are compatible with low cost high efficacy drivers
Low R_th enables effective thermal dissipation design for higher efficiency
Hot-color targeting ensures color is within ANSI bin at 85°C
3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformity

LUXEON 5050

LUXEON 5050 High Output White LEDs

5050 Round Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

5050 Square Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

5050 HE Parts

Product performance of LUXEON 5050 at specified current, Tj=25°C.

Documentation

Design Resources

LUXEON 5050

LUXEON 5050

LUXEON 5050

Features & Benefits

Applications
